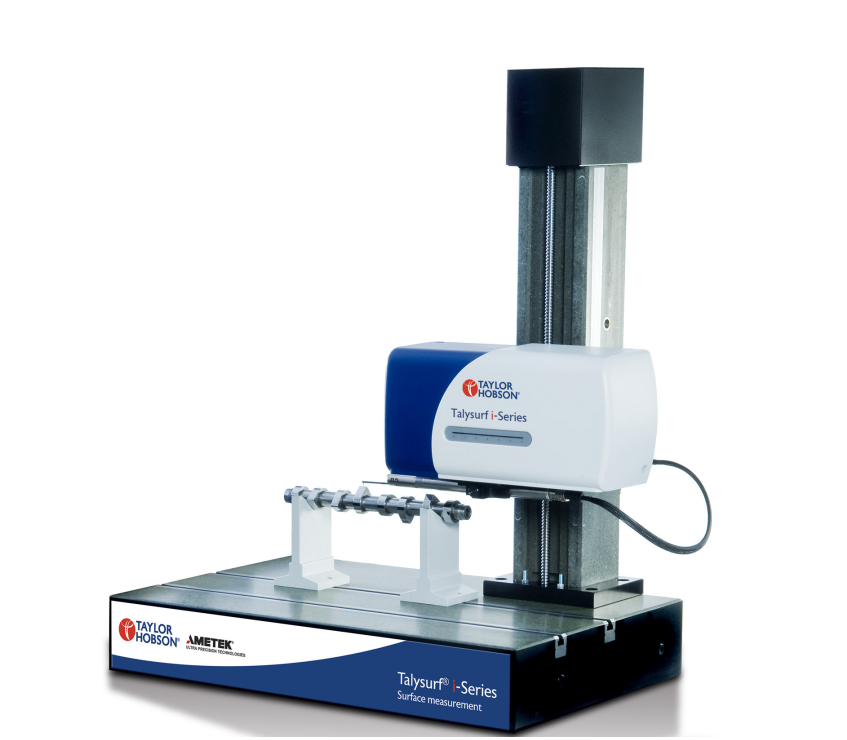

英國泰勒霍普森Form Talysurf Multi-Axis systems

Taylor Hobson has provided precision form and surface fish measurement solutions for many decades.The automation technology employedwithin manufacturing processes has evolved significantly over this period, bringing new metrology requirements which are met by the latestForm Talysurf Multi-Axis systems.

市場價:

優惠價:0.00

服務保障:原裝真品|發票保障|全國包郵|售后無憂
立即留言

聯系人:朱盛

聯系電話:021-58951071

手機號:15921165535

郵箱:[email protected]

工作時間:8:00-17:45



Multi-axis component manipulation for high precision applications

Taylor Hobson has provided precision form and surface fish measurement solutions for many decades.The automation technology employedwithin manufacturing processes has evolved significantly over this period, bringing new metrology requirements which are met by the latestForm Talysurf Multi-Axis systems.

高精度行業的自動化測量

    生產率提高-全自動測量程序
    減少設置錯誤-自動漸進和軸向組件對齊
    重復性提高-高精度,高穩定性定位

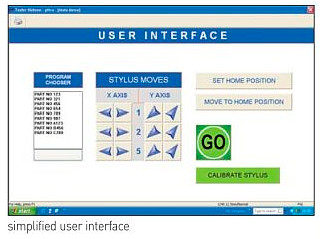

    減少培訓-簡單的教導/學習軟件編程

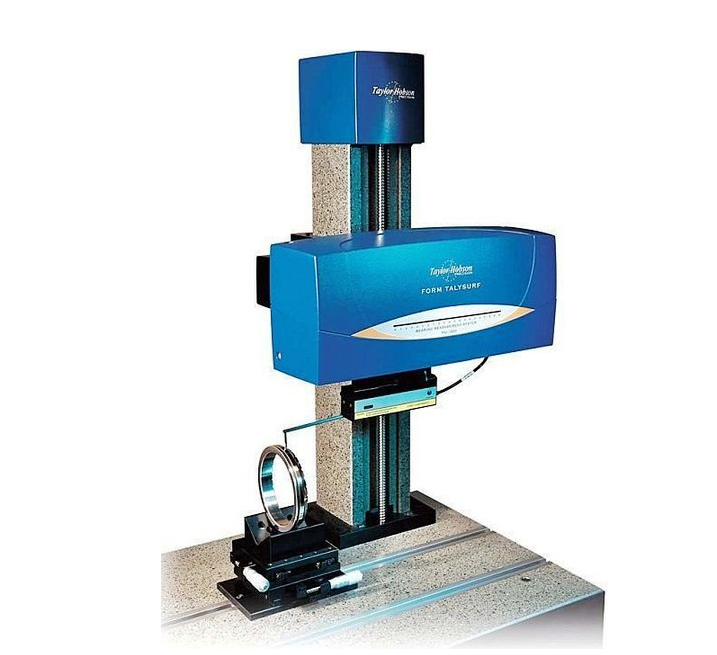

Form Talysurf Multi-Axis systems
多軸表面光潔度儀器可在很少或不需要操作員干預的情況下進行零件測量。
Conventional surface finish instruments consist of a column and traverse unit designed for positioning of the stylus tip to the part.Hwever there are many cases where it is necessary to re-align or move the component rather than the measurement axes, such as when measuring multi-featured parts.

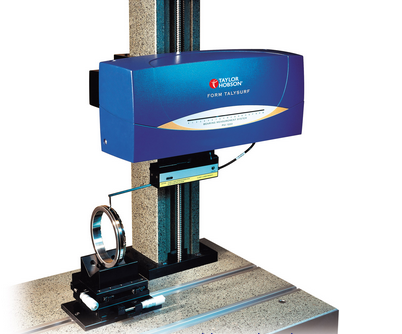

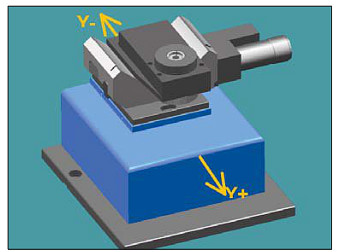

Y axis movement using linear stage

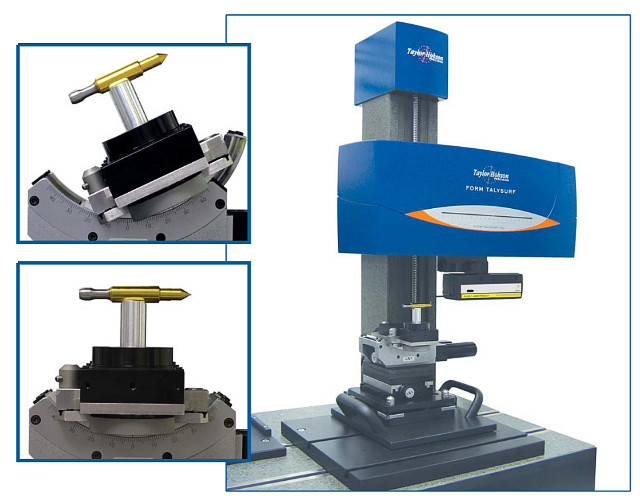

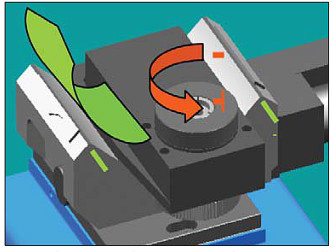

tilt and rotary movement using combined stages

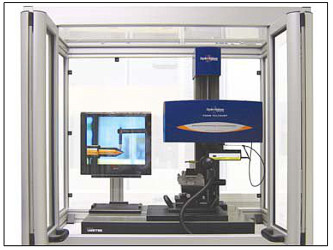

video magnifier and environmental enclosure

自動零件對齊的優勢:
減少停機時間
自動化的測量程序釋放了操作員的精力,使他們可以繼續執行其他任務。
減少零件處理
在許多情況下,手動處理零件是不希望的,并可能導致零件變形或變質??梢酝ㄟ^自動測量例程來避免過度的處理。
重復性提高
高精度定位確保可重復的測量并減少操作員錯誤,這在分析小角度和半徑等特征時尤其重要。
高精度平臺
以下是表面光潔度儀的Form Talysurfrange可用的高精度載物臺列表:
旋轉臺
        范圍/分辨率= 360°/ 0.01°Gonometer
        范圍/分辨率= 145°/ 0.001°線性位移臺
        范圍/分辨率= 25mm / 0.1um
可選配件
        。小型顯示器的視頻監控器和攝像機

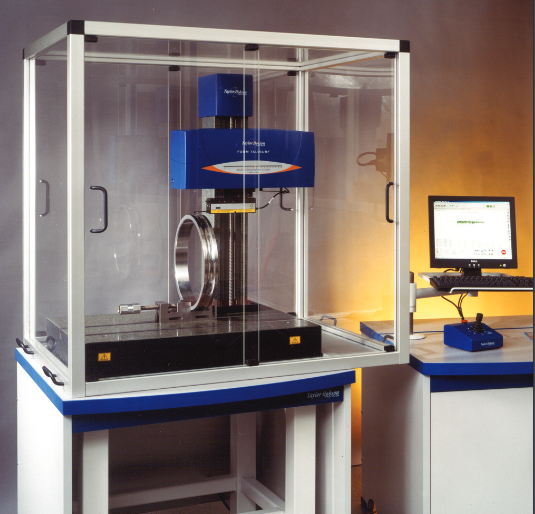

        。帶有主動防振架的環境防護罩
        。Stylus lift lower mechanism (PGl only]
        。鍵盤和顯示器支架
特殊應用的定制解決方案
        我們可以為您量身定制解決方案以使其完全適合您的應用,其中可能包括諸如工作保持裝置或特殊測針等元件。
