SIGMASCOPE® SMP350 根據渦流相位法DIN EN 2004-1 和 ASTM E 1004 測量電導率。 這種方法允許無接觸測量,即使隔著油漆或者厚達500μm的塑料涂層,這種方法也幾乎不受表面粗糙度的影響。
市場價:
優惠價:0.00
聯系人:朱盛
聯系電話:021-58951071
手機號:15921165535
電導率是一個重要的材料屬性,不僅對金屬傳導電流的能力,也對其成分、微觀結構和機械性能提供信息。使SIGMASCOPE® SMP350可以簡單快速并精確地測定電導率。SIGMASCOPE® SMP350 根據渦流相位法DIN EN 2004-1 和 ASTM E 1004 測量電導率。 這種方法允許無接觸測量,即使隔著油漆或者厚達500μm的塑料涂層,這種方法也幾乎不受表面粗糙度的影響。

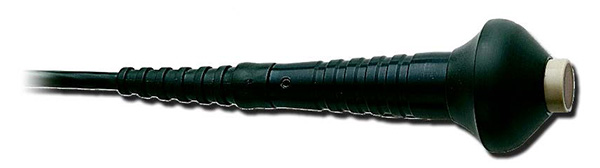

Probe FS40HF探頭:
Probe FS40HF探頭根據DIN EN 2004-1和ASTM E 1004來測量非磁性金屬的電導率。由于集成了溫度傳感器,所有探頭都適合進行溫度校正的測量,并自動顯示標準化為20°的電導率值 C(68°F)。 所有探頭均在高頻下工作,因此只能在低材料深度下進行測量。 使用的測量方法可以進行無接觸測量,也可以在非導電面漆(如漆面或塑料蓋)下進行測量。
? 近地表測量
? 薄板的測量
? 關于薄涂層的磨損程度的判定
? 熱噴涂層評估
Probe FS40HF 技術參數 | ||
探頭設計: | Axial single tip probes with fixed measuring system | |
應用: |
非磁性金屬的電導率 | |
測量范圍: | 5 ...108 %IACS | |
探頭頻率: | 1000 kHz and 2000 kHz | |
誤差: | 1... 100 %IACS: ≤ 1 % of 標稱值 | |
重復精度: |
1000 kHz: ≤ 0.35 %IACS of 讀值
2000 kHz: ≤ 1 %IACS of 讀值
|
|
Influences: | 取決于材料和探頭使用頻率 | |
Material Thickness Th:
![]() |
No measurement deviation within the trueness for Th ≥ Th min Depending on the electrical conductivity of the material the minimal material thickness Thmin can be computed according to the following equation: | |
![]() |
f = Probe frequency in Hz
σ = Electrical conductivity of the material in %IACS
K ≈ 0.9, specific probe factor
|
|
Examples For probe frequency 1000 kHz
0.18 mm (0.007") for 100 %IACS (Cu)
0.25 mm (0.010") for 51.7 %IACS (Al)
1.35 mm (0.053") for 1.72 %IACS
|
||
Edge Distance (R), Specification From Probe Tip Centre: | For all probe frequencies - No measurement error within the trueness as of R a‰¥ 7 mm / 0.28" Probe needs a minimum of R = 7 mm / 0.28" | |
![]() |
Measuring spot in the centre of the circular surface | |
Edge Distance (X), Specification From Probe Tip Centre: | For all probe frequencies. No measurement error within the trueness as of X ≥ 7 mm / 0.28" | |
Measuring spot |
![]() |
|
Curvature (R), measurement deviation from the nominal value with reference to master calibration on flat surface: | For 1000 and 2000 kHz Measurement error ≥ 10 % for R ≤ 12.5 mm / 0.49". Probe needs a minimum of R = 1 mm / 0.04" | |
Measuring spot |
![]() |
|
Distance Compensation (Measurement through a lacquer or plastic coating): | 0a€|500 ??m / 19.54" Max. Measurement deviation: 2 % of reading, Thickness of an air gab, plastic foil or lacquer coating. | |
允許操作環境溫度 | -10°C...+40°C / +14°F...+104°F | |
表面溫度: | max. +40°C / +104°F | |
防潮: | No | |
針尖材質: | Plastic | |
針尖更換: | No | |
測量方法: | 相敏渦流法 | |
標配: | Probe, measurement prism (grip ring 2), Cu standard approx. 100 %IACS | |
尺寸: | Cable length: 1.5 m / 59.06", other cable lengths on request | |
![]() |
