探頭根據DIN EN 2004-1和ASTM E 1004來測量非磁性金屬材料的電導率。由于集成了溫度傳感器，所有探頭都適合進行溫度校正的測量，并自動顯示標準化為20°的電導率值 C（68°F）。 所有探頭均以不同的頻率工作，因此能夠測量各種材料深度。 使用的測量方法可以進行無接觸測量，也可以在非導電面漆（如漆面或塑料蓋）下進行測量?？捎糜冢?/span>

        ? 物料分類
        ? 檢查熱損傷和材料疲勞
        ? 關于熱處理材料的硬度和強度的結論
        ? 金屬純度的測定
        ? 合金質量標準
        ? 熱噴涂層評估
        ? FS40LF，用于測試硬幣合金和小貴金屬的真?zhèn)蔚母郊庸δ?/span>

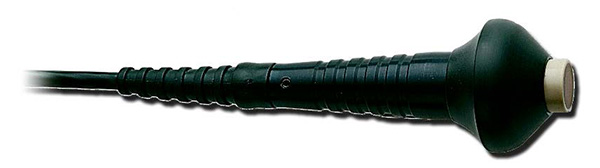

Probe FS40 and FS40LF 技術參數
	FS40	FS40LF
探頭設計:	Axial single tip probes with spring-loaded measuring system
應用:	Determination the electrical conductivity of non-ferrous metals (NF)
測量范圍:	5... 108 %IACS
探頭頻率:	60 kHz, 120 kHz, 240 kHz & 480 kHz	15 kHz, 30 kHz, 60 kHz & 120 kHz
誤差:	Trueness 1...100 %IACS: ≤ 2 % of nominal value	1...100 %IACS: ≤ 1 % of nominal value
	Based on Fischer factory calibration standards with +20°C (+68°F) material temperature
重復精度:	Depending on probe frequency 60 kHz: ≤ 0.10 %IACS of reading 120 kHz: ≤ 0.15 %IACS of reading 240 kHz: ≤ 0.20 %IACS of reading 480 kHz: ≤ 0.35 %IACS of reading	Depending on probe frequency 15 kHz: ≤ 0.1 %IACS of reading 130 kHz: ≤ 0.1 %IACS of reading 160 kHz: ≤ 0.1 %IACS of reading 120 kHz: ≤ 0.15 %IACS of reading
	Based on Fischer factory calibration standards, 5 single readings per standard, standard with +20°C material temperature
Influences:	Depending on material and used probe frequency - The following values are valid for a sufficient material thickness which depends on the used probe frequency
Material Thickness Th:	No measurement deviation within the trueness for Th ≥ Thmin Depending on the electrical conductivity of the material the minimal material thickness Thmin can be computed according to the following equation:
		f = Probe frequency in Hz σ = Electrical conductivity of the material in %IACS K ≈ 0.9, specific probe factor
	Examples Depending on probe frequency 460 kHz: ≤ 0.10 %IACS of reading 120 kHz: ≤ 0.15 %IACS of reading 240 kHz: ≤ 0.20 %IACS of reading 480 kHz: ≤ 0.35 %IACS of reading	Examples Depending on probe frequency 15 kHz: ≤ 0.1 %IACS of reading 130 kHz: ≤ 0.1 %IACS of reading 160 kHz: ≤ 0.1 %IACS of reading 120 kHz: ≤ 0.15 %IACS of reading
Edge Distance (R), Specification From Probe Tip Centre:	For all probe frequencies- No measurement error within the trueness as of R ≥ 7 mm / 0.28" - Probe needs a minimum of R = 7 mm / 0.28"
		Measuring spot in the centre of the circular surface
Edge Distance (X), Specification From Probe Tip Centre:	For all probe frequencies - No measurement error within the trueness as of X ≥ 7 mm / 0.28"
	Measuring spot
Curvature (R), measurement deviation from the nominal value with reference to master calibration on flat surface:	For 60, 120, 240, 480 kHz Compensation of curvature for R = 3...50 mm (0.12...1.97" ) by entering the diameter of curvature into the instrument No measurement error within the trueness as of R ≥ 50 mm / 1.97"	For 15 kHz No measurement error within the trueness as of R ≥ 48 mm / 1.89" Error ≥ 10 % for R ≥ 10.3 mm / 0.41" For 30 kHz No measurement error within the trueness as of R ≥ 45 mm / 1.77" Error ≥ 10 % for R ≥ 9.5 mm / 0.37" For 60 kHz and 120 kHz Compensation of curvature for R = 3... 50 mm (0.12...1.97") by entering the diameter of curvature into the instrument No measurement error within the trueness as of R ≥ 50 mm / 1.97"
	Measurement with measurement prism (grip ring 2) from the scope of supply. Probe needs a minimum of R = 1 mm / 0.04"
Distance Compensation (Measurement through a lacquer or plastic coating):	Thickness of an air gab, plastic foil or lacquer coating. Distance compensated up to a thickness of 500 μm / 0.02" max. error: 1 % of reading
	Valid for measuring range - 0.5...108 %IACS	Valid for measuring range - 5... 100 %IACS
允許的工作環境溫度	-10°C...+40°C / +14°F...+104°F
表面溫度	max. +40≥C / +104°F
防潮	No
針尖材料	Plastic
針尖可更換:	No
測量方法:	相敏渦流法
標配:	Probe, measurement prism (grip ring 2), Cu standard approx. 100 %IACS
尺寸:	Cable length: 1.5 m / 59.06", other cable lengths on request
